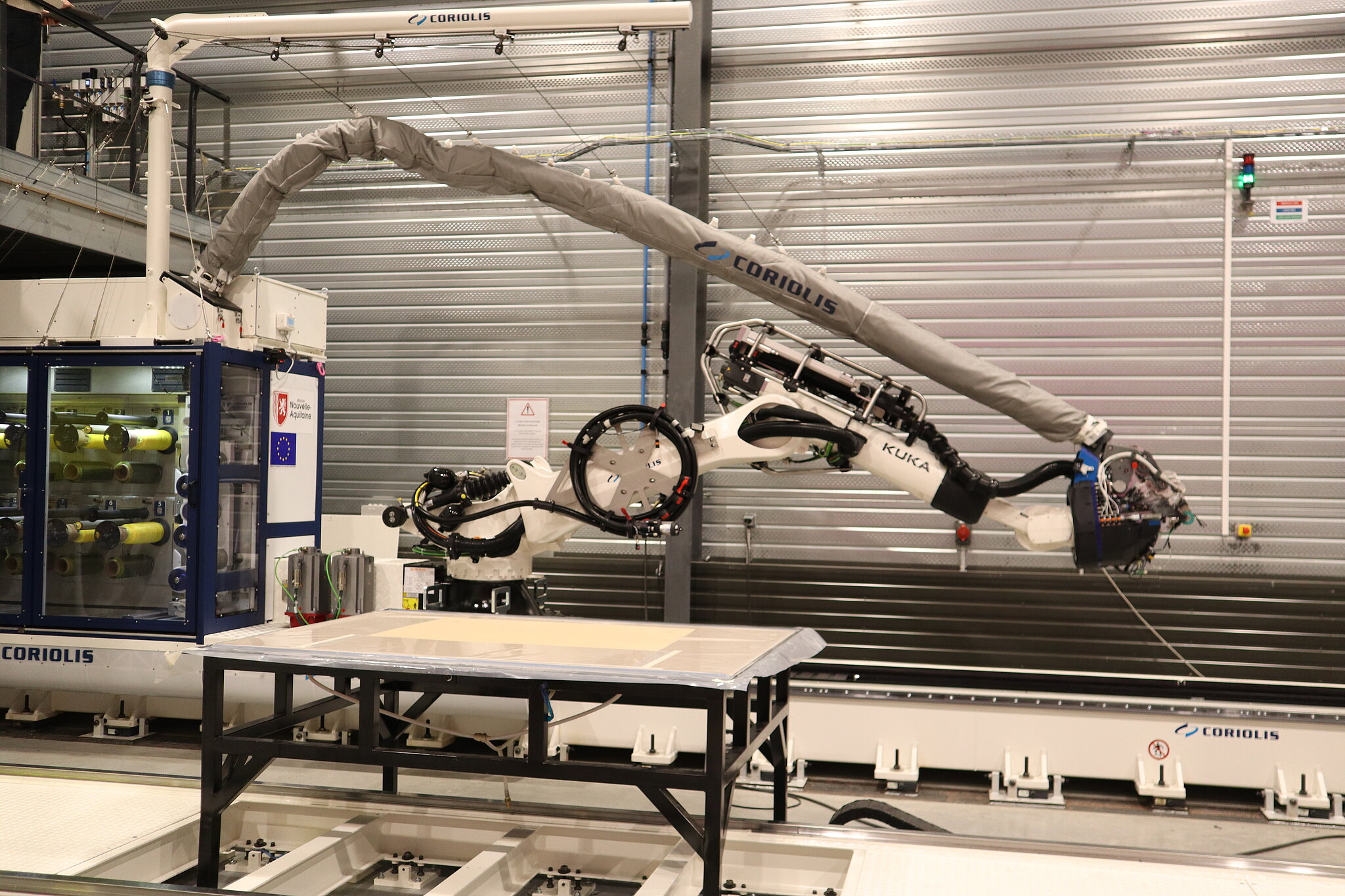

Coriolis C1.2 for Composite Materials
Description
- Automated Fibre Placement (AFP) machine
- Manufacturing of complex parts
- Thermoset materials, thermoplastics, and dry fibres
- High-speed cutting and adding
- Large spool capacity up to 15 kg
Specifications
- Fibres: 8 × 1/4" or 16 × 1/4"
- Cut/feed repeatability : ± 2 mm
- Cut/feed accuracy : ± 2.5 mm
- Maximum feed speed : 1 m/s
- Maximum cutting speed : 1 m/s
- Maximum lay-up speed : 1.5 m/s
- Compaction force : up to 1200 N / 2400 N
- Temperature control : < 15 °C
- Gap tolerance between tapes : +2.5 / -0 mm
- Minimum cut/feed distance : 10 mm
